OH3/OH4 In-Line Pump

In-line Vertical Pump
– Model PWI-BB OH3

The PWI-BB is an API 610, OH3 heavy duty bearing bracketed vertical in-line pump designed to cover a wide range of applications found in petroleum processing facilities, gas processing, petrochemical, offshore installations (platforms), hydrocarbon and crude oil terminal and aviation (jet) fueling applications. All pump thrust is absorbed by the pump bearings in lieu of depending on the motor bearings. The rugged, economical and compact PWI-BB in-line design eliminates the need for an expensive base-plate and saves valuable floor space.

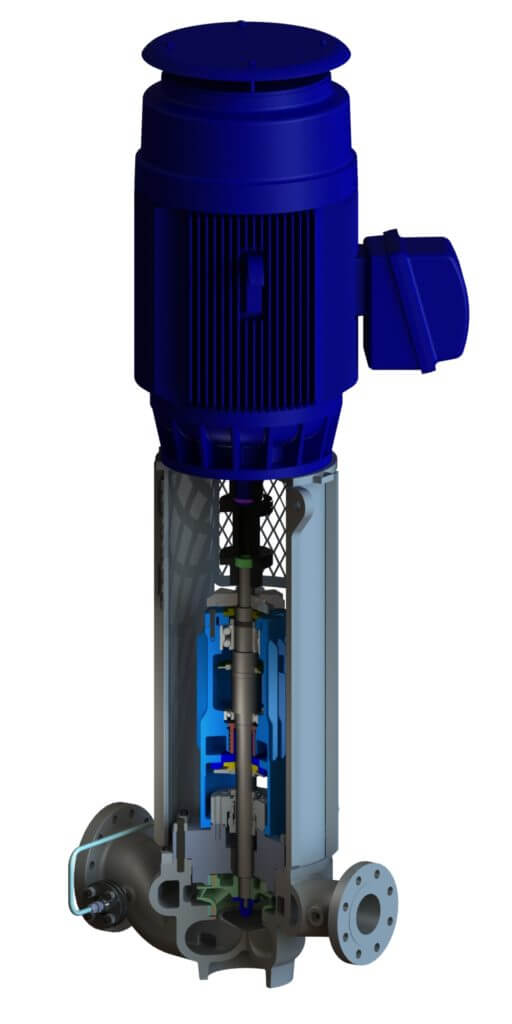

OH3 PWI vertical in-line pumps assembly cut away

Vertical In-Line Pump – Single Stage
– Model PWI OH4

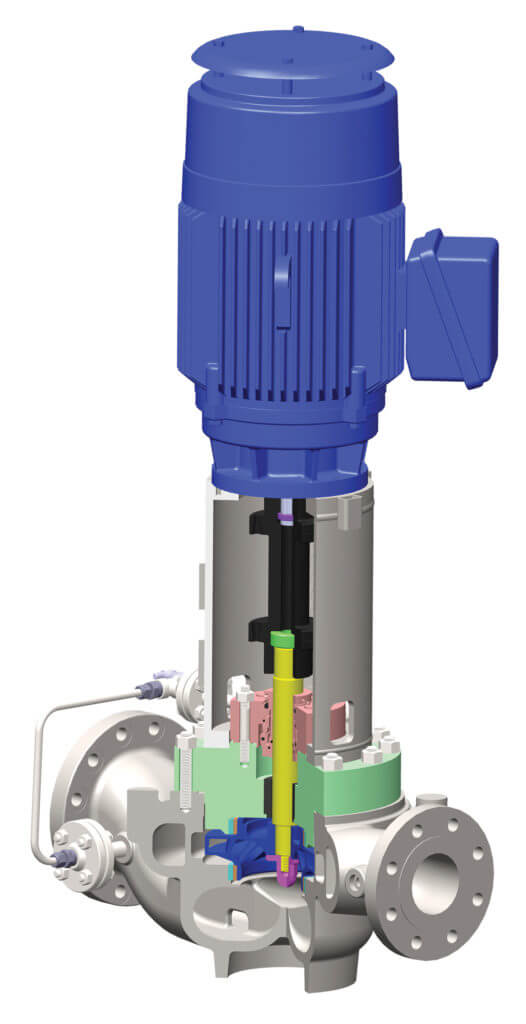

The PWI-OH4 is an API 610 rigid coupled vertical in-line pump designed to cover a wide range of applications found in petroleum processing facilities, gas processing, petrochemical, offshore installations (platforms), hydrocarbon and crude oil pipeline and aviation (jet) fueling applications. The rugged, economical and compact PWI in-line design eliminates the need for an expensive baseplate and saves valuable floor space. vertical inline pumps OH4 cutaway



OPERATING PARAMETERS OH3/OH4

Flow (gpm) Head (ft) Pressure (psig) Temp (F)
 10,750  1,250  740  750
